10 Bores 2.2g/Cm3 Quartz Glass Tubes High Precision Capillary

Brand Name : ZCQ

Model Number : OEM

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 1

Price : USD0.1 per piece

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 1000 pieces per week

Delivery Time : 5 wooking days

Packaging Details : carton, wooden case

Material : High purity Quartz

Color : Transparent

Density : 2.2g/cm3

Certificate : ISO, RoHs

Contact Now

10 Bores High Precision Multi-holes Capillary Quartz Glass Tubes

Since Year 1998 we have been producing glass capillaries in utmost perfection for a wide range of applications.

In the past decades our expertise as well as the variety of our products have been growing continuously. Apart from standard dimensions we also produce numerous special sizes - even in small quantities.

Our modern production technology enables us to realize customer requirements at short notice.

The high-precision measuring equipment ensures compliance with tight tolerances.

Technical Parameters

Circular capillary
Parameter	Diameter	Tolerance	Unit
Length	1~2000	±0.2	mm
OD	0.2~11	±0.03
ID	0.06~10	±0.03
Material	Quartz glass, borosilicate glass, and other materials
Specification	Other dimensions and tolerances can be manufactured according to customer requirements

Square capillary
Parameter	Diameter	Tolerance	Unit
Length	1~2000	±0.2	mm
Width	0.3x0.3~6x6	±0.03
ID	0.1x0.1~5x5	±0.03
Material	Quartz glass, borosilicate glass, and other materials
Bores	One, two, three, …..etc., as required.
Shapes	Round, Square, Rectangular, Triangle, Conical, D-shaped, Elliptical, Trapezoidal, Hexagonal, V-shaped, U shaped, Grooved … etc., as required.
Specification	Other dimensions and tolerances can be manufactured according to customer requirements

Capillary rod
Parameter	Diameter	Tolerance	Unit
Length	1-2000	±0.2	mm
Square side length	0.2-11	±0.03
Round diameter	0.06-11	±0.03
Material	Quartz glass, borosilicate glass, and other materials
Shape	Round, Square, Rectangular, Triangle, Conical, D-shaped, Elliptical, Trapezoidal, Hexagonal, V-shaped, U shaped, Grooved
Specification	Other dimensions and tolerances can be manufactured according to customer requirements

10 Bores 2.2g/Cm3 Quartz Glass Tubes High Precision Capillary

Product Tags:

10 bores quartz glass tubes

high precision capillary quartz glass tubes

2.2g/cm3 quartz tubes

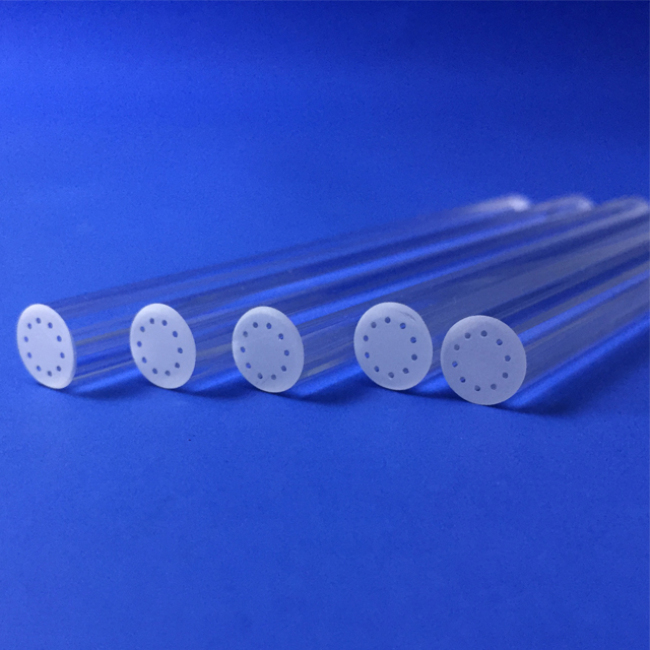

10 Bores 2.2g/Cm3 Quartz Glass Tubes High Precision Capillary Images
